| Description |
Metric |
Backhead
(Topsub) |
API 6-5/8" REG PIN |
| Outside |
225mm |
| Piston |
170mm |
Length
(including topsub) |
1,560mm |
| Bit Shank Type |
N100
SD10 |
| Weight |
357kg |
| Bit Size |
250-310mm |
|

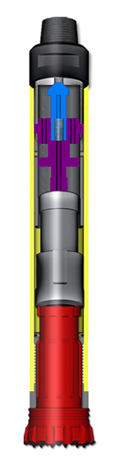

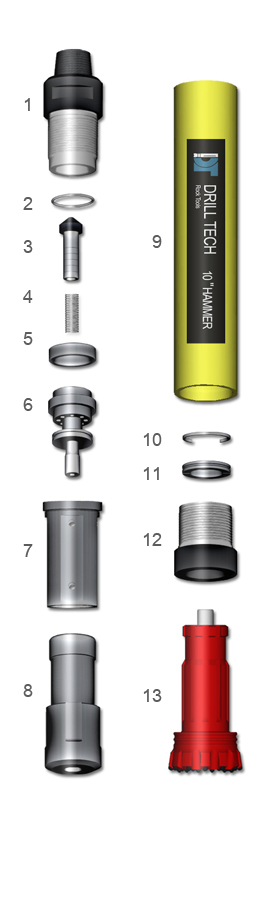

Part List |
 |
| No |
Description |
Part Number |
Weight |
| 1 |
Back head(Top sub) |
DT-N10001 |
93 |
| 2 |
"O"_ring of top sub |
DT-N10002 |
0.03 |
| 3 |
Chek Valve |
DT-N10003 |
1.5 |
| 4 |
Spring |
DT-N10004 |
0.5 |
| 5 |
Make-up ring |
DT-N10005 |
16 |
| 6 |
Air Distributor |
DT-N10006 |
17 |
| 7 |
Inner Cylinder |
DT-N10007 |
13 |
| 8 |
Piston |
DT-N10008 |
50 |
| 9 |
Cylinder |
DT-N10009 |
133 |
| 10 |
Piston Retaining Ring |
DT-N10010 |
0.9 |
| 11 |
Bit Retaining Ring |
DT-N10011 |
2.9 |
| 12 |
Drive Chuck |
DT-N10012 |
29 |
| 13 |
Drill bits |
DT-N10013 |
90 |
|
|
