| Description |
Metric |
백해드
(탑서브) |
API 4½" REG PIN
|
| 외경 |
180mm
|
| 피스톤 외경 |
148mm
|
길이
(탑서브 포함) |
1370mm
|
| 타입 |
M 80 |
| 무게 |
180kg
|
| 비트 적용 범위 |
195-302mm
|
|

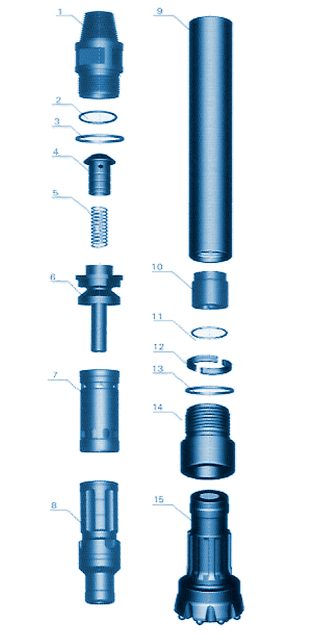

Part List |
 |
| No |
Description |
| 1 |
Top Sub |
| 2 |
Ring of Top Sub |
| 3 |
Breakout Ring |
| 4 |
Check Valve |
| 5 |
Spring |
| 6 |
Air Distributor |
| 7 |
Internal Cylinder |
| 8 |
Piston |
| 9 |
External Cylinder |
| 10 |
Guided Sleeve |
| 11 |
Ring of Stop Ring |
| 12 |
Stop Ring |
| 13 |
Breakout Ring |
| 14 |
Drive Chuck |
| 15 |
Drill Bit |
|
|
